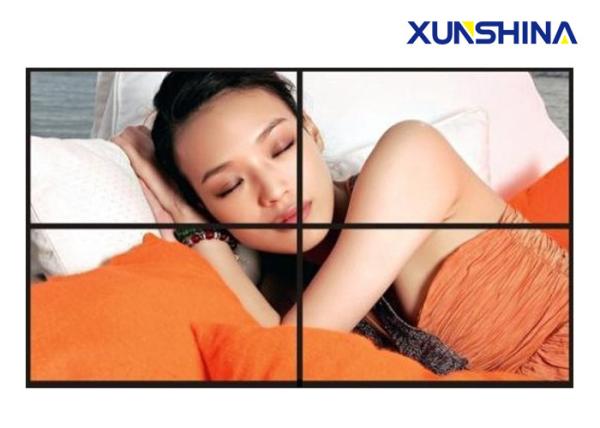

Indoor LED Video Wall 2X2 Gas Station Digital Signage Super Narrow Bezel
Features
1) Support single-screen display ,any combination of the display ,the image streched display ,vertical screen display
2) Ultra narrow frame design 3.5mm
3) Continuous working for 7 x 24 hours, deserve to trust.
4) Full hardware architecture, no CPU or operating system
5) Through RS232 serial port to realize the remote control function
6) LED light source to save energy
Specifications
| Model No. | XS460-4600HD-SNL3 |
| LCD | Size | 46" Samsung panel |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.53025(H)x0.53025(V) |
| Backlight | LED |
| Brightness(typical) | 500cd/m² |
| Contrast | 3000 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1018.08(H)×572.67(V) |
| Bezel | 3.5mm |
| Interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| Control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
| Physical parameter | Dimension | 1021.98mm(W) x576.57mm(H) x121.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 18.6Kg |
| Power | Power consumption | ≦190W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
| Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
| Accessory | Standard accessories | Power cable, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior notice |
Applications
1. Supermarkets, large-scale shopping malls
2. Agencies, chain shops, large-scale sales
3. Hotels, restaurants
